Huawei eKitEngine
GE/10GE Uplink | Noise-Free and Energy-Saving | Layer 2 Managed Switches
Make SME Network Easier and Smarter

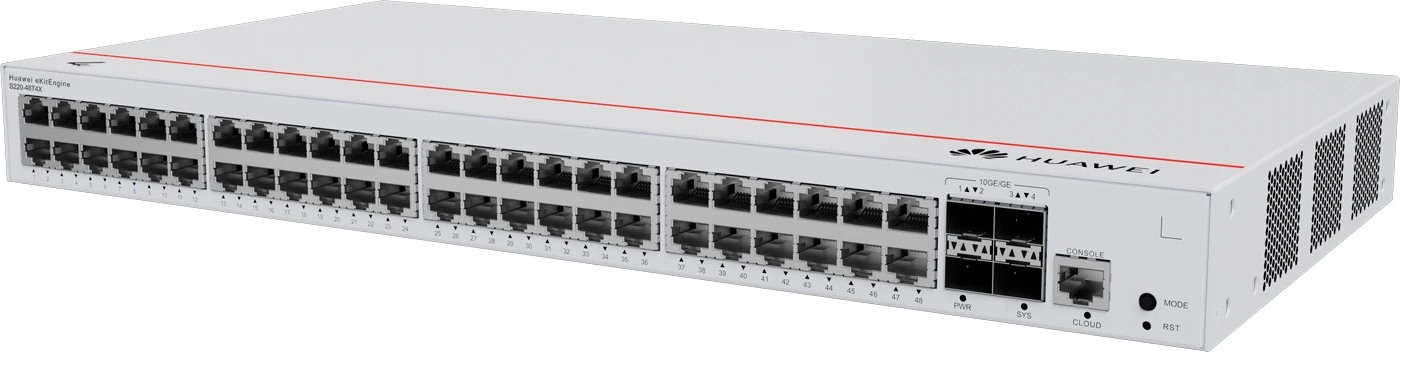

Huawei eKitEngine S220S series switches, offering rich uplink and downlink ports, are Layer 2 GE/10GE switches designed for the SME and SMB market. These switches provide many features, such as rich management methods (web-based management, app-based management and SNC-based management), flexible Ethernet networking, and diversified security control. Therefore, they can be widely used in scenarios such as SME office, economic hotels, factories, primary and secondary education, and building security.
Flexible Ethernet Networking
Diversified Security Control
Easy Operations and Maintenance
PoE Power Supply
Cloud Management
In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), eKitEngine S220S series switches support the industry's latest Ethernet Ring Protection Switching (ERPS) technology (ITU-T G.8032), providing millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.
eKitEngine S220S supports comprehensive defense against DoS, ARP, and ICMP attacks. It sets up and maintains DHCP snooping binding tables and discards packets that do not match table entries, ensuring users connect only to authorized DHCP servers.
| Specification | S220S Series Overview |
|---|---|
| Switching capacity | Varies by model (26 Gbps up to 98 Gbps) |
| Packet forwarding rate | Varies by model (19 Mpps up to 73 Mpps) |
| Downlink ports | Models include 8/24/26-port variants with 10/100/1000BASE-T (PoE and non-PoE options) |
| Uplink ports | Options including 2 x 2.5GE SFP, 2 x 10GE SFP+, and combo 2.5GE/10/100/1000 ports |
| Dimensions (H x W x D) | Most 1 U chassis; dimensions vary by model |
| Maximum power consumption | Dependent on PoE configuration (examples: 128 W, 195 W, 400 W) |
| Operating temperature | -5°C to +40°C (0 m to 1800 m) |
| Storage temperature | -40°C to +70°C |
| Operating humidity | 5% RH to 95% RH, non-condensing |
