HUAWEI eKitEngine
High-density enterprise switching with advanced features
Scalable performance for demanding network environments

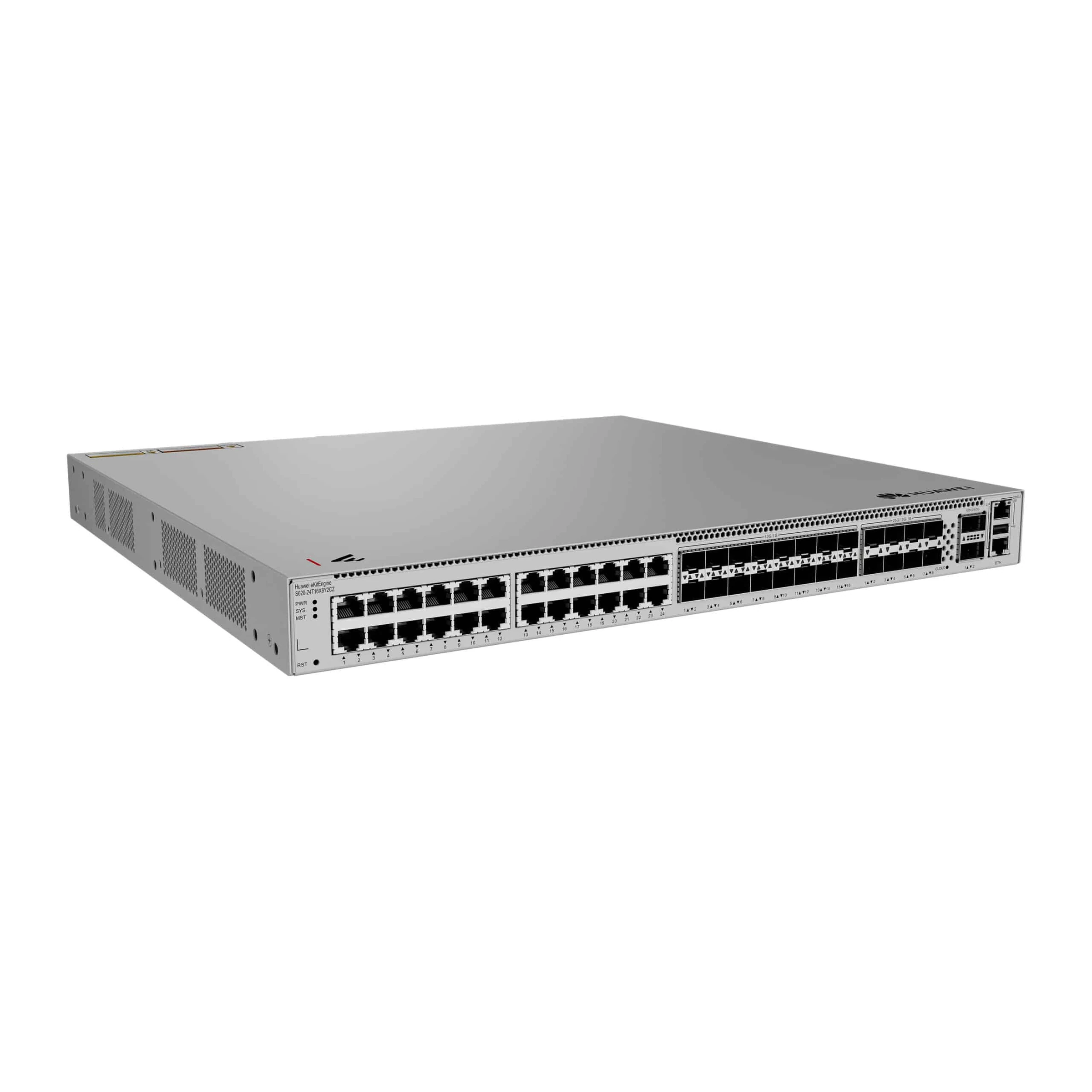

Huawei eKitEngine S620 Series Switches are enhanced fully-managed 10GE switches designed for the small and medium-sized business (SMB) market. They provide a variety of ports such as GE electrical, 10GE optical, 40GE optical, and 10GE optical, supporting flexible and high-bandwidth network deployment. The switch features diversified security control, rich management methods, higher performance, and extended service processing capabilities. It can be widely used as a core or aggregation switch on large- and medium-sized networks.
High Performance Forwarding
Advanced Security Controls
Flexible Stacking (iStack)
Cloud Management
Energy Efficient Design
Rich L2/L3 Protocols
Easy O&M & Upgrades
QoS & Traffic Scheduling
Resilient HA Options
Comprehensive Access Control
| Product Model | eKitEngine S620-24T16X8Y2CZ / eKitEngine S620-16X8YZ |
|---|---|
| Fixed port | 24 x 10/100/1000M BASE-T, 16 x 10GE SFP+, 8 x 25GE SFP28, 2 x 40/100GE QSFP28 (model dependent) |
| Switching capacity | 1568 Gbps / 1120 Gbps |
| Packet forwarding rate | 1167 Mpps / 833 Mpps |
| Expansion slot | One slot reserved for expansion card |
| Chassis dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm |
| Chassis height (U) | 1 U |
| Typical power consumption | 122 W / 79 W (model dependent) |
| Maximum power consumption | 127 W / 85 W (model dependent) |
| Operating temperature | -5°C to +45°C |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Air cooling, intelligent fan speed adjustment |
