36Kw Three Phase Solar Inverter Smart Energy Controller
High-performance commercial three-phase grid-tie inverter for enterprise solar installations.

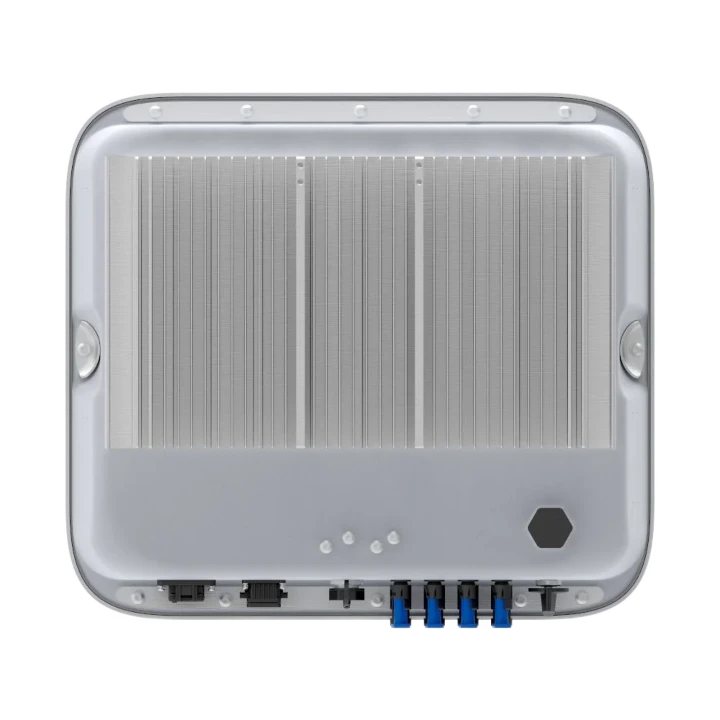

Huawei SUN2000-36KTL-M3 Solar Inverter
Model Number: SUN2000-36KTL-M3
- Product Name: Huawei SUN2000-36KTL-M3
- Rated Power: 36 KW
- Max PV Input Power: 54,000 Wp
- Max Input Voltage: 1,100 V
- Output Voltage: 230 Vac / 400 Vac / 480 Vac
- Output Current: 52.0A
- Output Frequency: 50Hz / 60Hz
- Output Type: Three Phase
- Max Efficiency: 98.7%
- European Efficiency: 98.4%
- Dimensions: 640 × 530 × 270 mm
- Weight: 43 kg
- Protection Class: IP65
- Certification: CE TUV
- Warranty: 5 Years
SUN2000-36KTL-M3 Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuring the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
SUN2000-36KTL-M3 Specifications
| Technical Parameter | SUN2000-36KTL-M3 |
|---|---|
| Max. efficiency | 98.7% |
| European weighted efficiency | 98.4% |
| Technical Parameter | SUN2000-36KTL-M3 |
|---|---|
| Max. PV Input Power | 54,000 Wp |
| Max. input voltage | 1,100 V |
| Operating voltage range | 220 V - 1,000 V |
| Start up voltage | 220 V |
| Rated input voltage | 600 V |
| Max. input current per MPPT | 26 A |
| Max. short-circuit current | 40 A |
| Number of inputs | 8 |
| Number of MPPT trackers | 4 |
| Technical Parameter | SUN2000-36KTL-M3 |
|---|---|
| Rated AC output power | 36,000 W |
| Max. apparent power | 40,000 VA |
| Max. output current | 52.0 A |
| AC output voltage | 230 Vac / 400 Vac / 480 Vac |
| Output frequency | 50 Hz / 60 Hz |
| Grid connection type | Three Phase |
| Feature | Specification |
|---|---|
| Protection Class | IP65 |
| DC disconnect switch | Yes |
| AC disconnect switch | Yes |
| Overvoltage protection | Yes |
| Short circuit protection | Yes |
| Ground fault protection | Yes |
| Parameter | Value |
|---|---|
| Dimensions (H × W × D) | 640 × 530 × 270 mm |
| Weight | 43 kg |
| Warranty Period | 5 Years |
| Operating Temperature | -25 °C ~ +60 °C |
| Storage Temperature | -20 °C ~ +85 °C |
| Compatible Device | Status |
|---|---|
| SUN2000 Optimizer | Compatible |
| LUNA2000 Battery | Compatible |
| Huawei Smart Logger | Compatible |
| Standard / Certification | Compliance |
|---|---|
| IEC 61727 | ✓ Compliant |
| IEC 62109-1 / 62109-2 | ✓ Compliant |
| EN 50160 | ✓ Compliant |
| EN 50438 | ✓ Compliant |
| VDE 4105 | ✓ Compliant |
| UL1741 | ✓ Compliant |
| CE Mark | ✓ Certified |
