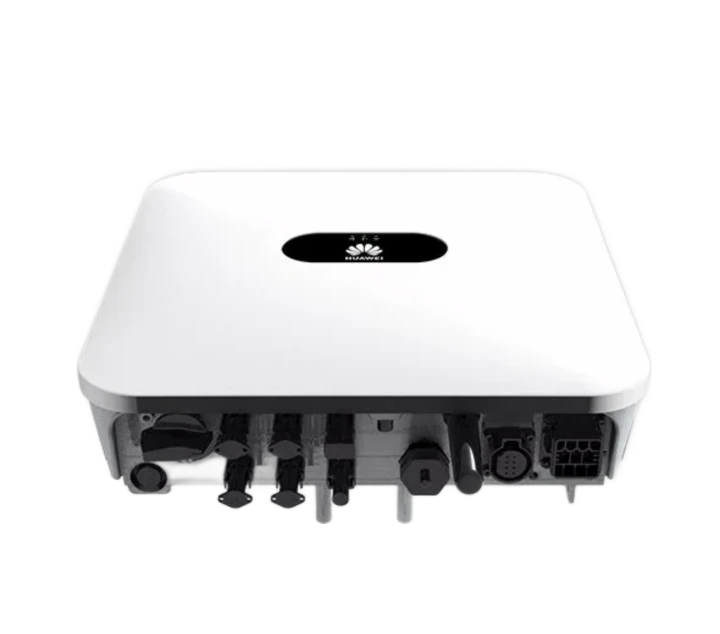

Huawei SUN2000-15KTL-M2 Solar Inverter
Model Number: SUN2000-15KTL-M2
- Model Number: SUN2000-12/15/17/20KTL-M2
- Rated PV Input Voltage: 600V (160 V ~ 950 V)
- Output Frequency and Voltage: 50 / 60Hz; 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
- Grid Type: Three Phase
- Size: 525 x 470 x 262 mm
- Type: DC/AC Inverters
- Inverter Efficiency: 98.30%
- Safety: EN/IEC 62109-1, EN/IEC 62109-2
- Weight: 25 kg
- Protection Degree: IP65
- Max. Output Power: 15000W
- Max. Apparent Power: 16500VA
- Max. Output Current: 25.2A
SUN2000-15KTL-M2 Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuring the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
SUN2000-15KTL-M2 Specifications
| Technical Parameter | SUN2000-15KTL-M2 |
|---|---|
| Max. efficiency | 98.65% |
| European weighted efficiency | 98.30% |
| Technical Parameter | SUN2000-15KTL-M2 |
|---|---|
| Recommended max. PV power | 22,500 Wp |
| Max. input voltage | 1,080 V |
| Operating voltage range | 160 V ~ 950 V |
| Start up voltage | 200 V |
| Rated input voltage | 600 V |
| Max. input current per MPPT | 22 A |
| Max. short-circuit current | 30 A |
| Number of MPP trackers | 2 |
| Max. input number per MPP tracker | 2 |
| Technical Parameter | SUN2000-15KTL-M2 |
|---|---|
| Grid connection | Three phase |
| Rated output power | 15,000 W |
| Max. apparent power | 16,500 VA |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE |
| Rated AC grid frequency | 50 Hz / 60 Hz |
| Max. output current | 25.2 A |
| Adjustable power factor | 0.8 leading ~ 0.8 lagging |
| Max. total harmonic distortion | ≤ 3% |
| Input-side disconnection device | Yes |
|---|---|
| Anti-islanding protection | Yes |
| AC over current protection | Yes |
| AC short circuit protection | Yes |
| AC over-voltage protection | Yes |
| DC reverse-polarity protection | Yes |
| DC surge protection | TYPE II |
| AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
| Residual current monitoring unit | Yes |
| Arc fault protection | Yes |
| Ripple receiver control | Yes |
| Integrated PID recovery | Yes |
| Operation temperature range | -25 ~ +60 °C (-13 °F ~ 140 °F) |
|---|---|
| Relative humidity | 0 % RH ~ 100% RH |
| Max. operating altitude | 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Cooling | Natural Convection |
| Display | LED Indicators; Integrated WLAN + FusionSolar App |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional) |
| Weight (with mounting plate) | 25 kg |
| Dimensions (W x H x D) (incl. mounting plate) | 525 x 470 x 262 mm (20.7 x 18.5 x 10.3 inch) |
| Degree of protection | IP65 |
| Nighttime Power Consumption | < 5.5 W |
| DC MBUS compatible optimizer | SUN2000-450W-P |
|---|
| Safety | EN/IEC 62109-1, EN/IEC 62109-2 |
|---|---|
| Grid connection standards | G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777.2, C10/11, ABNT, VFR 2019, RD 1699, RD 661, PO 12.3, TOR D4, IEC61727, IEC62116, DEWA |
