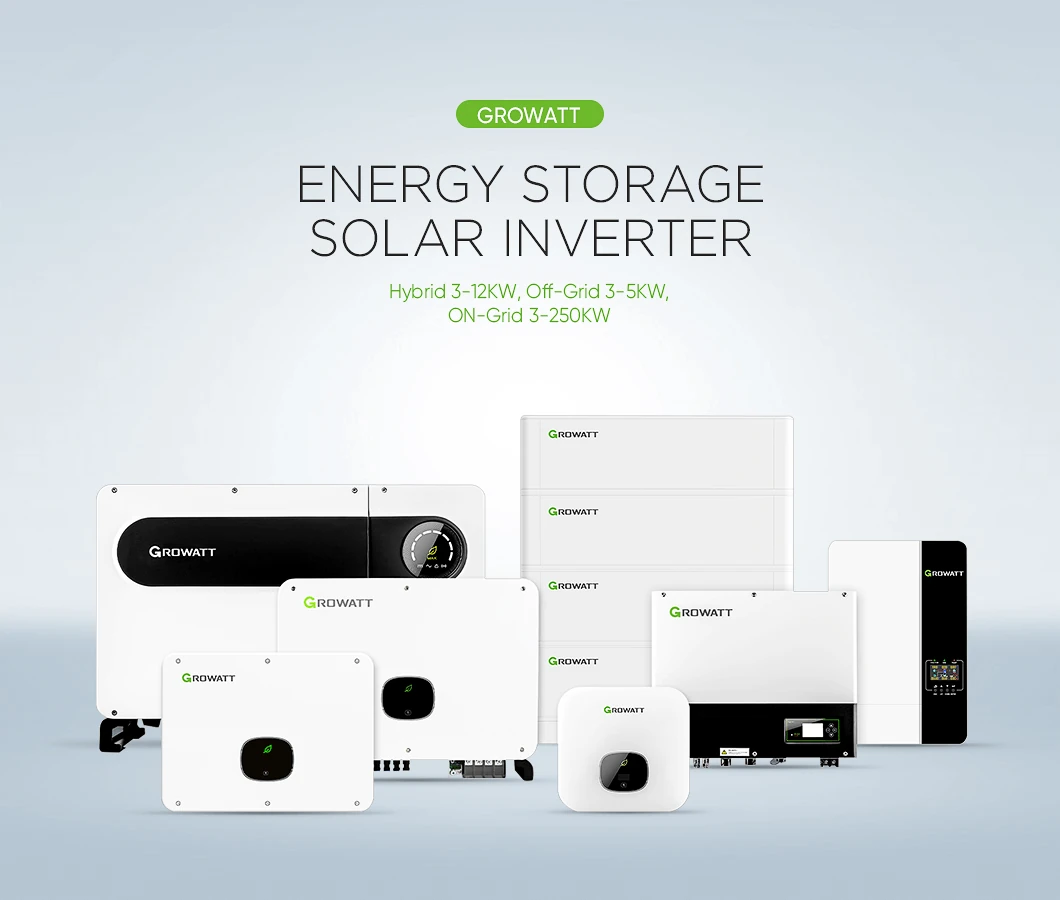

Growatt MAX 100KTL3 X LV Three Phase On Grid Solar Inverter
High-performance three-phase grid-connected solution for commercial applications
Growatt MAX 100KTL3 X LV Specifications
- Product Name: Growatt MAX 100KTL3 X LV Three Phase On Grid Solar Inverter
- Model Number: MAX 100-125KTL3-X LV
- Max. string input current: 16A per string
- No. of MPPTs: 10 (fuse free design)
- Max. efficiency: 98.4%
- AFCI protection: Yes
- DC Switch: With DC Switch
- Surge protection: Built-in Type II surge protection device both DC & AC side
- Intelligent IV diagnosis: Yes (with active problem detection)
- DC Connection: DC 2 in 1 connection
- IP Rating: IP66
- Warranty: 5 years
Specification
MAX 100KTL3 X LV Technical Specifications
| Max.DC vattage | 1100V |
|---|---|
| Start voltage | 195V |
| Nominal voltage | 600V |
| MPP vattage range | 180V-1000V |
| No. of MPP trackers | 10 |
| No. of PV strings per MPP tracker | 2 |
| Max Input current per MPP tracker | 32A |
| Max.short-circuit current per MPP tracker | 40A |
| AC nominal power | 100000W |
|---|---|
| Max. AC apparent power | 110000VA |
| Nominal AC voltage(range*) | 230V/400V(340-440VAC) |
| AC grid frequency(range*) | 50/60 Hz(45-55Hz/55-65 Hz) |
| Max. output current | 158.8A |
| Adjustable power Factor | 0.8leading - 0.8lagging |
| THDi | =3% |
| AC grid connection type | 3W/N/PE |
| Max efficiency | 98.4% |
|---|---|
| European efficiency | 98.4% |
