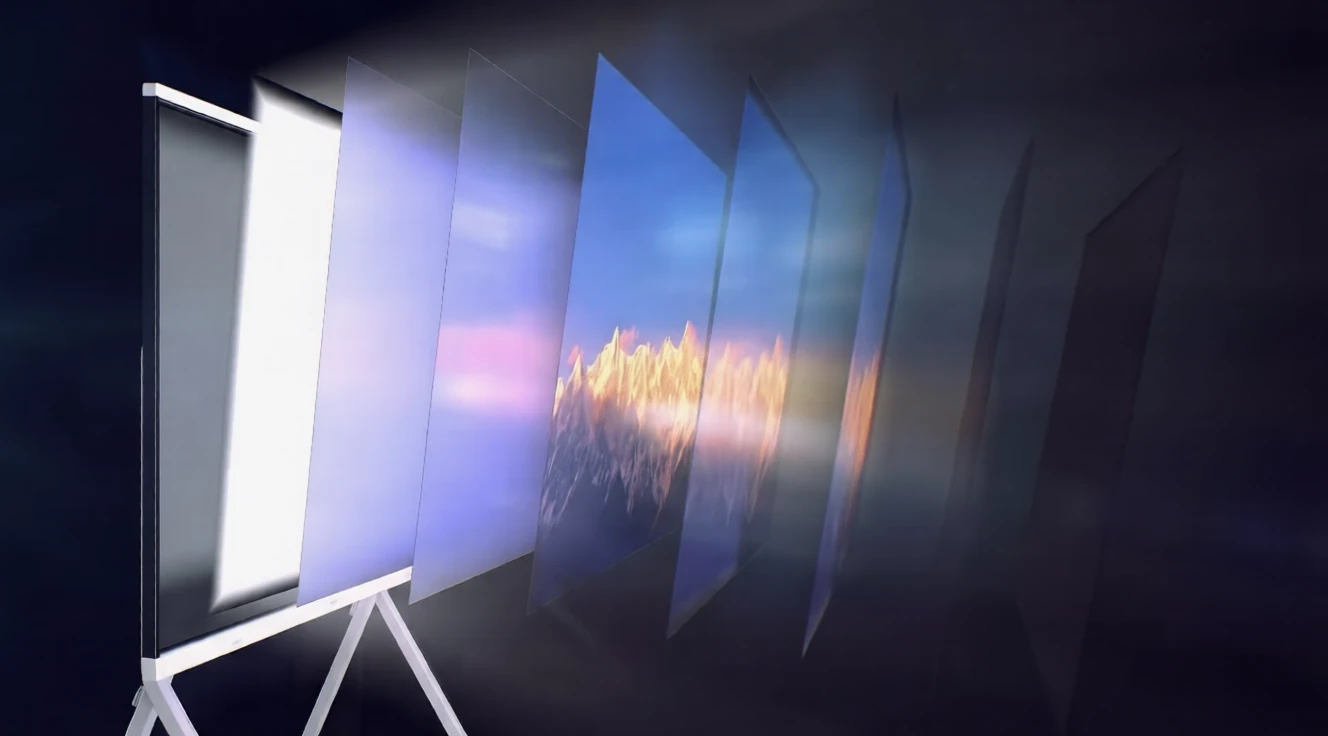

4K Soft Light Screen
- 4K display with rich visuals
- Optical anti-blue light with zero color cast
- Hardware solution for eye comfort (TÜV certifications)
HUAWEI
IdeaHub Board 3 Pro
Reimagine Your Smart Workplaces
Seamless collaboration | Ultimate experience | Security and health
HUAWEI IdeaHub Board 3 Pro
Bezel-less Immersion
- Seamless zero bonding design
- Aerospace-grade nano coating
- Ultimate visual immersion for content display
Flexible Connectivity & Performance
- 8-core CPU for powerful and efficient operation
- NFC/Type-C/Type-A ports on front panel for plug-and-play peripherals
- Dual-system one-tap switchover: HarmonyOS + Windows
Highlights
4K display, rich visuals

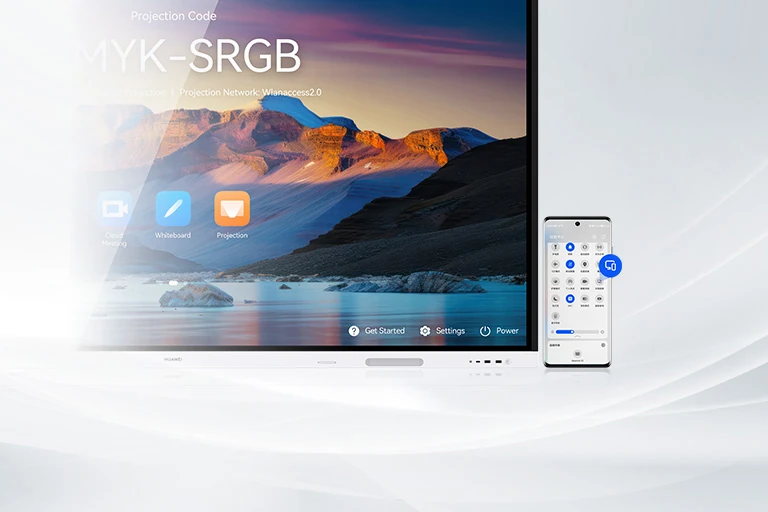

Simply enable Wi-Fi on your IdeaHub and PC/mobile phone to initiate 4K projection without the need for a password or network connection

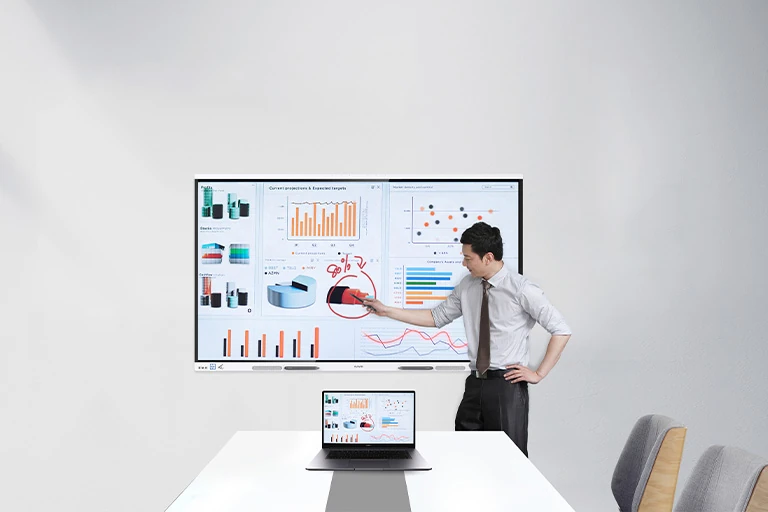

Gain unique insights and professional commentary. While effortlessly annotating across screens into your PPT with smooth efficiency
Easily switch between HarmonyOS and Windows. OPS swap-free, and adapt to more apps
Comprehensive security protection, effectively protecting enterprise privacy and data from being leaked
The IdeaManager device management platform remotely manages and controls multiple IdeaHubs. The IdeaCare supports one-click quick diagnostics of typical faults and troubleshooting.

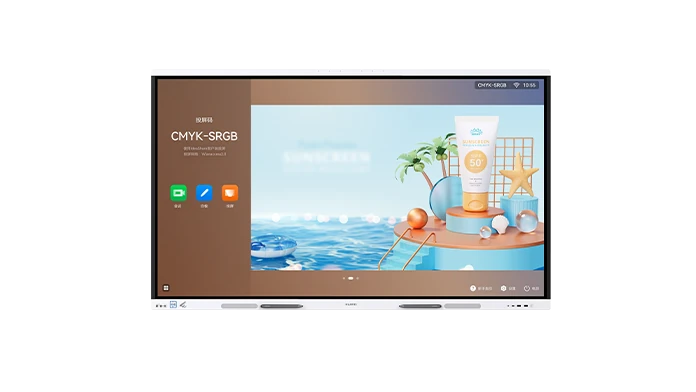

Unified management and scheduled push by regions and organizations, with up to 50 images to be played in a loop
Tech-powered product selection for a better customer experience

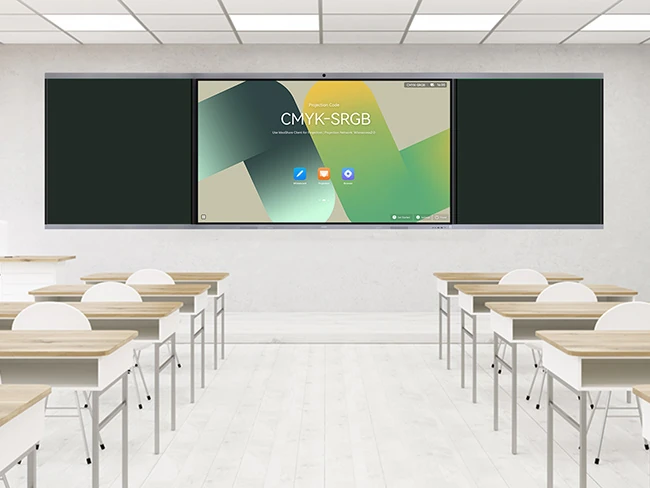

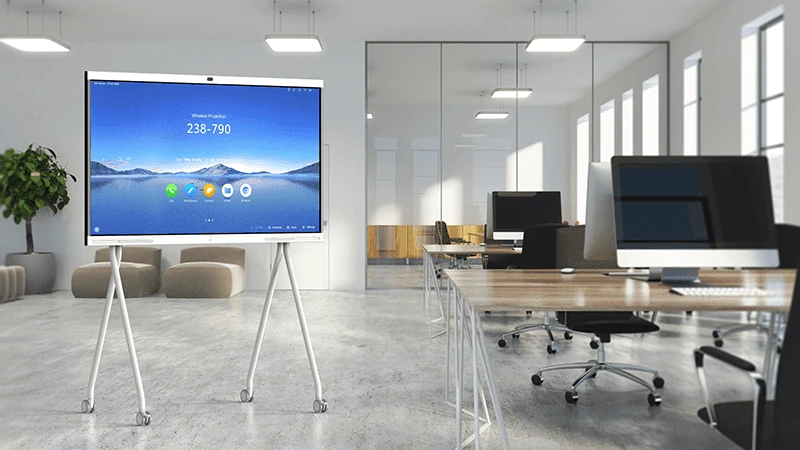

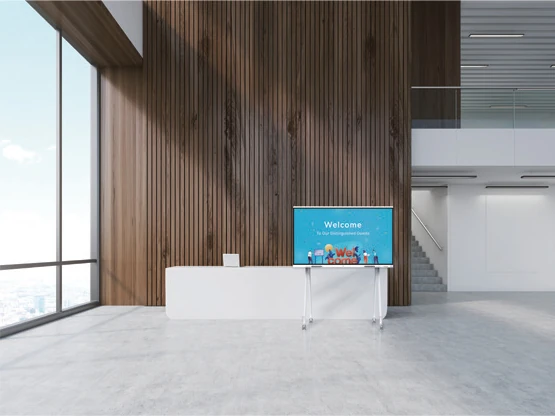

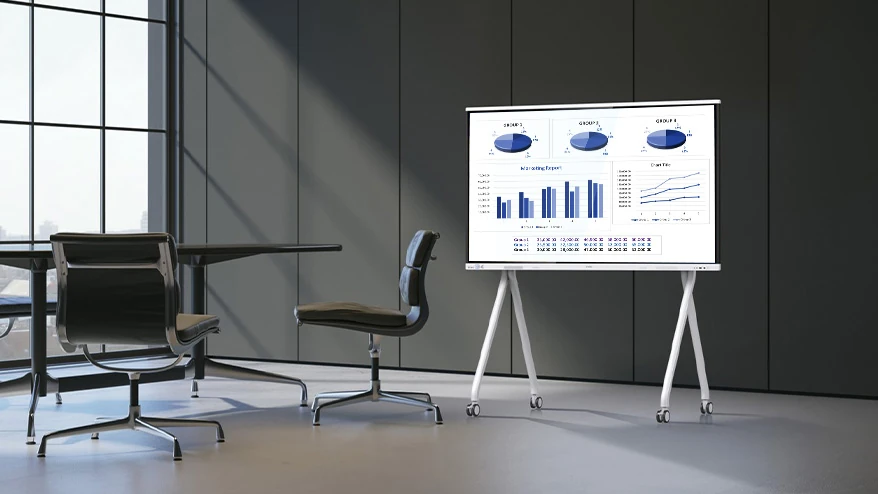

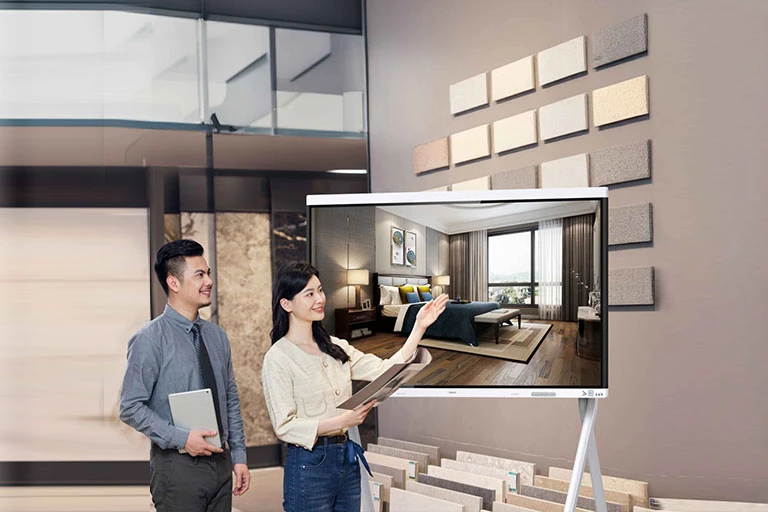

Perfect for Every Environment
Application Scenarios where IdeaHub Board 3 Pro enhances collaboration and communication.
Technical Specifications
| Product Name | IdeaHub Board 3 Pro |
|---|---|
| Models | 65" (IHB-65PB), 75" (IHB-75PB), 86" (IHB-86PB) |
| Dimensions (H x W x D) mm | 65": 892.5 x 1484.5 x 91.8 | 75": 1016.9 x 1705.7 x 91.8 | 86": 1157.0 x 1953.0 x 91.8 |
| Net Weight/Gross Weight | 65": 35.2/42.7 kg | 75": 46.7/56.7 kg | 86": 61.6/73.1 kg |
| Resolution | 4K |
|---|---|
| Backlight Type | D-LED |
| Screen Lamination | Zero bonding |
| Color Gamut | 85% NTSC |
| Speaker | Frequency domain: 100 Hz to 20 kHz | Quantity: 4 | Maximum power: 30 W |
|---|---|
| Microphone | Sound pickup angle: 180° | Quantity: 6 | Sound pickup distance: 10 m |
| Wireless Connection | Dual-Wi-Fi: Wi-Fi 5 + Wi-Fi 6 | Frequency: 2.4 GHz + 5 GHz | NFC: Supported |
|---|
| CPU | 8 cores |
|---|---|
| RAM | 8 GB |
| Flash | 64 GB |
| OS | HarmonyOS and Windows (OPS required) |
| Supported Apps | Native: Huawei Cloud Meeting, SmartRooms | Third-party: Tencent Meeting, Lark Meetings |
|---|---|
| Performance | Native meeting: 1080p@30 fps video | Third-party: Tencent Meeting 1080p, Lark Meetings 720p |
| Writing Latency | 16 ms |
|---|---|
| Content Saving | QR code scanning / Email / Local storage / USB flash drive |
| Touch Sensing Distance | 1.5 mm |
| Intelligent Writing Recognition | Supported |
| Front-Panel Ports | 1x Type-C | 2x USB 3.0 | 1x Type-B |
|---|---|
| Side-Panel Ports | 2x USB 2.0 | 1x USB 3.0 | 1x HDMI OUT | 2x HDMI IN | 1x 3.5mm Line-out | 1x 3.5mm Line-in | 1x RJ45 (10/100/1000 Mbit/s LAN) | 1x COM port |
Security and Health
Advanced security features and health protections ensuring safe, secure operation in enterprise environments.
- Password-based screen lock
- Guard against accidental misoperations and malware intrusions
- Prevent the leakage of corporate privacy and data
- CC EAL6+ high-level security certification for global commercial systems
- Controllable interface permissions with refined permission granularity
- Separate storage of sensitive data
- Randomized distribution of kernel address space
- Remote setting of shutdown time in batches
- Remote OTA update in batches
- Inspection and fault alarm
- Self-service diagnosis of typical faults
- Device usage and startup animation and bulletin board pushing
Ready to Transform Your Workspace?
Experience the future of smart office collaboration with HUAWEI IdeaHub Board 3 Pro. Perfect for modern teams and enterprises seeking seamless communication, ultimate experience, and enterprise-grade security.
